SPECIFICATIONS
Accuracy Class: 0.01 ohm
Brand Name: NoEnName_Null
DIY Supplies: Electrical
Data lock(hold): Yes
Display Type: Digital
Earth Resistance resolution: 0.01&Omega
Earth Voltage(AC) accuracy: Plusmn;3%rdg+5dgt
Earth Voltage(AC) resolution: 0.1V
Earth resistance Range: 0-20-200-2000&Omega
Electronic: No
Features 1: Ground resistance measurement
Features 2: Ground voltage measurement
High-concerned Chemical: None
Increase the accuracy temperature: 23℃±5℃
Key Words1: Earth resistance meter
Key Words2: Digital Earth Tester
Key Words3: Earth meter
Key Words4: Ground tester
Key Words5: Resistance meter
Measuring Range: 0-2000 Ohm
Model Number: DY4100
Operating Temperature: 0℃~40℃
Origin: Mainland China
Overload protection: Yes
Relative humidity: Less than 80%RH
Resolution 0-20Ω Earth resistance: ±2%+0.1&Omega
Response time 1: 5 seconds/ground voltage measurement
Response time 2: 2 seconds/resistance measurement
Size: 22x27x11cm
Storage temperature: -10℃~50℃
Testing Voltage: 0~30V
Type: Test Instruments
Weight: 1.9kg

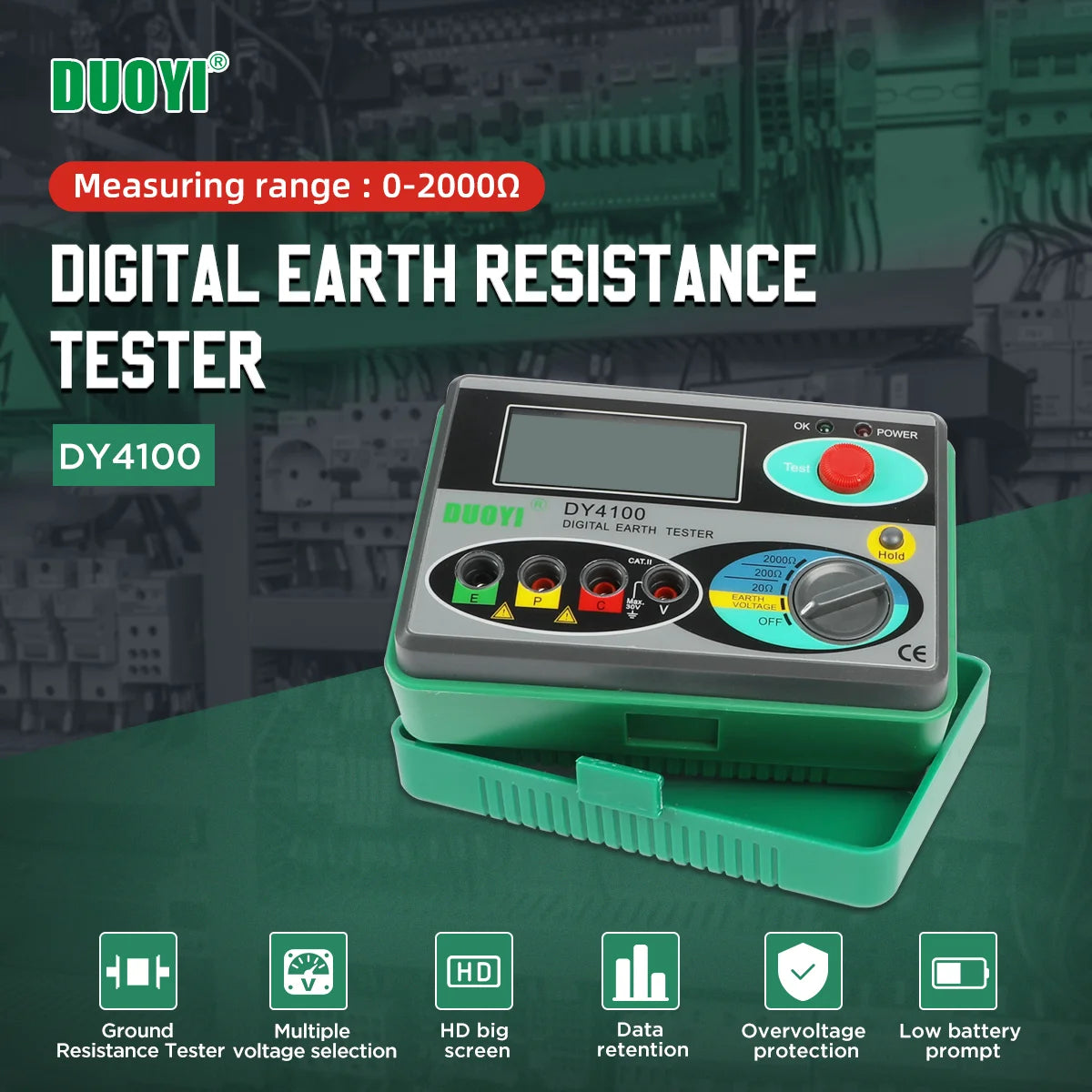

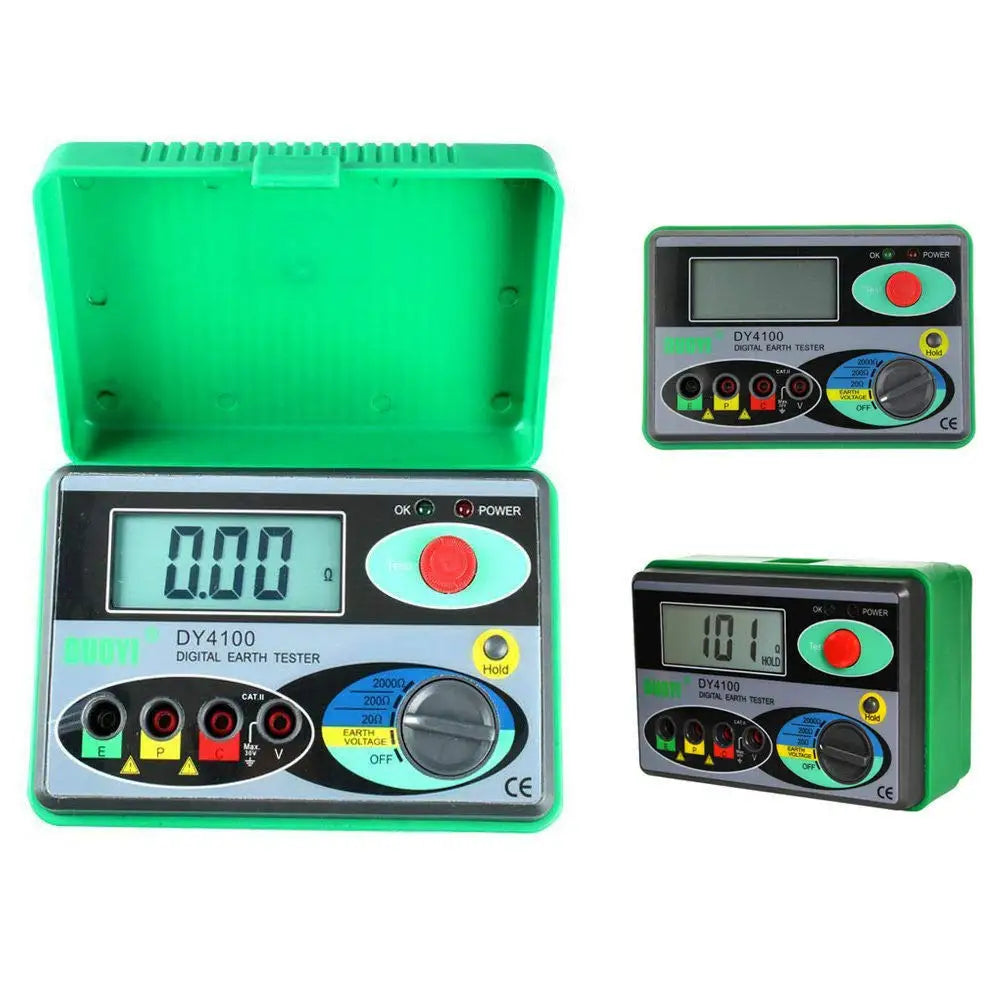

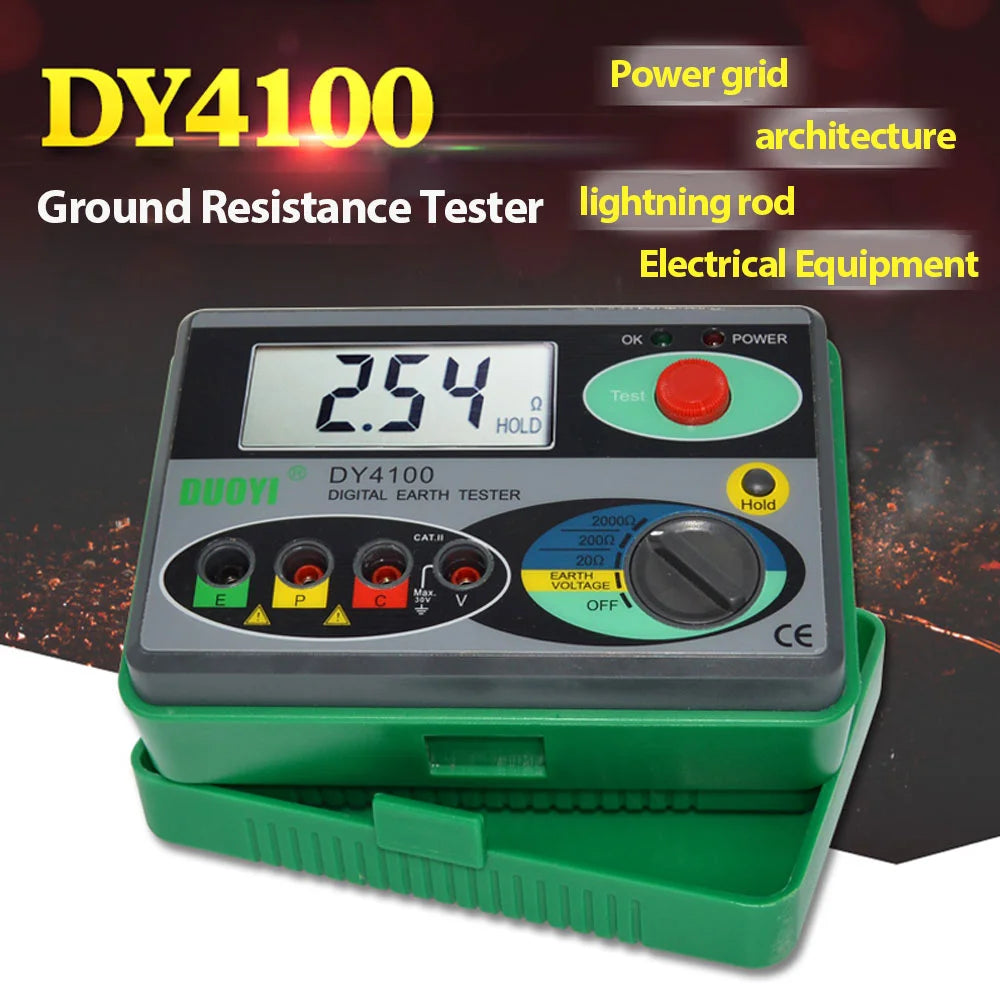

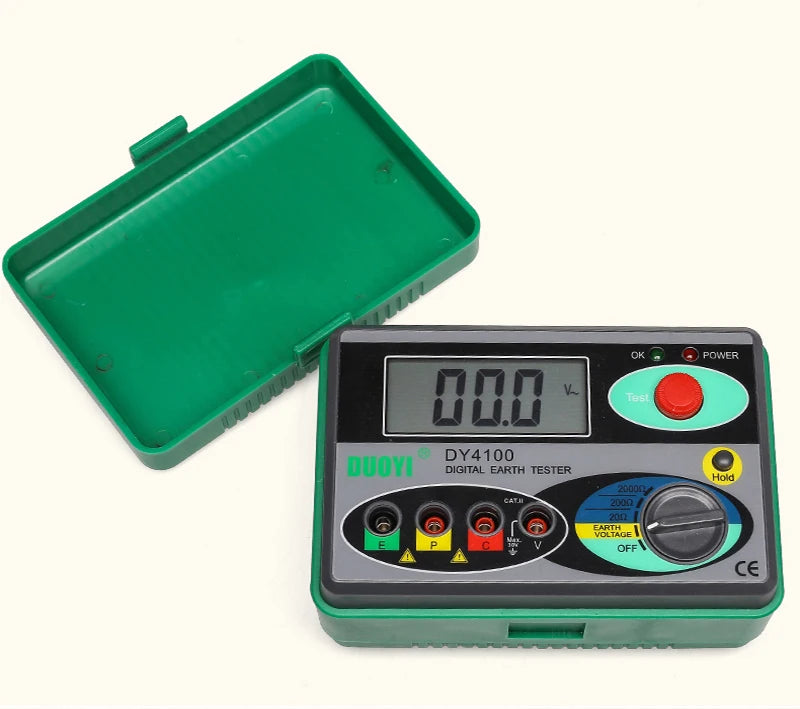

DUOYI DY4100 Digital Resistance Tester Earth Ground Meter Multimeter with Higher Accuracy Power Systems Inspection Tool
1.DY4100 Digital Ground Resistance Tester can test earth resistance of various earth systems including power systems, electric equipments, lightning conductors as well as resistance value of low resistance conductor and AC voltage test.

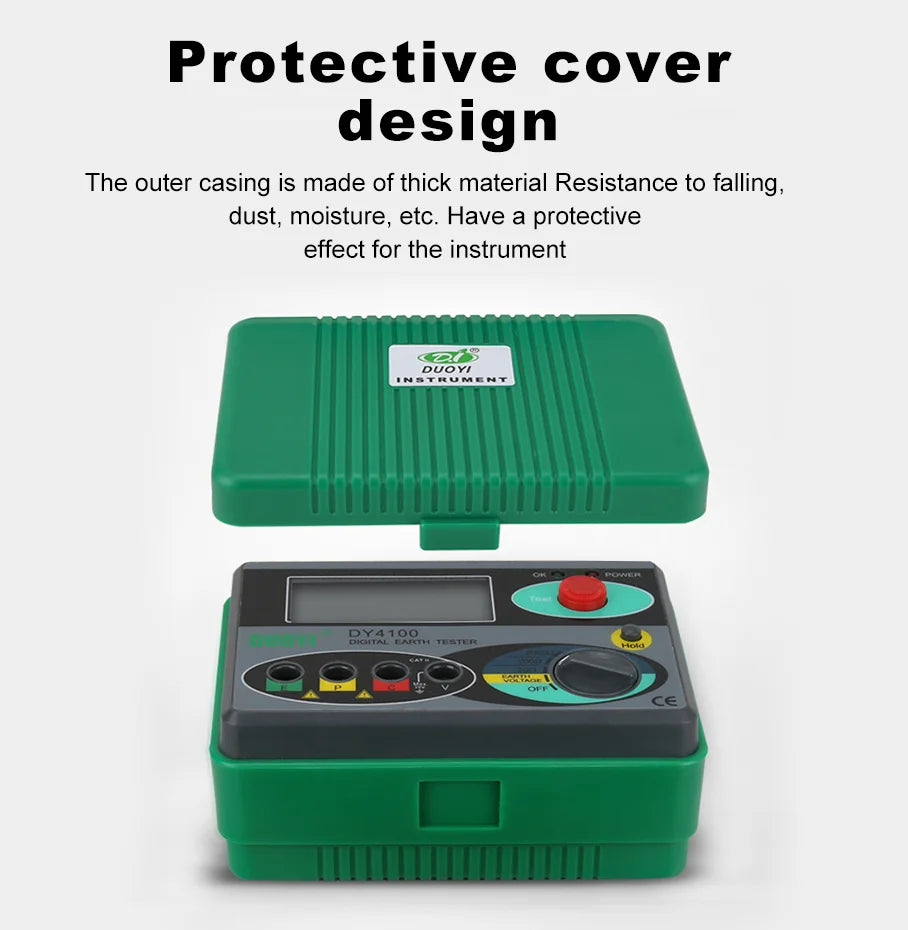

2.This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure.

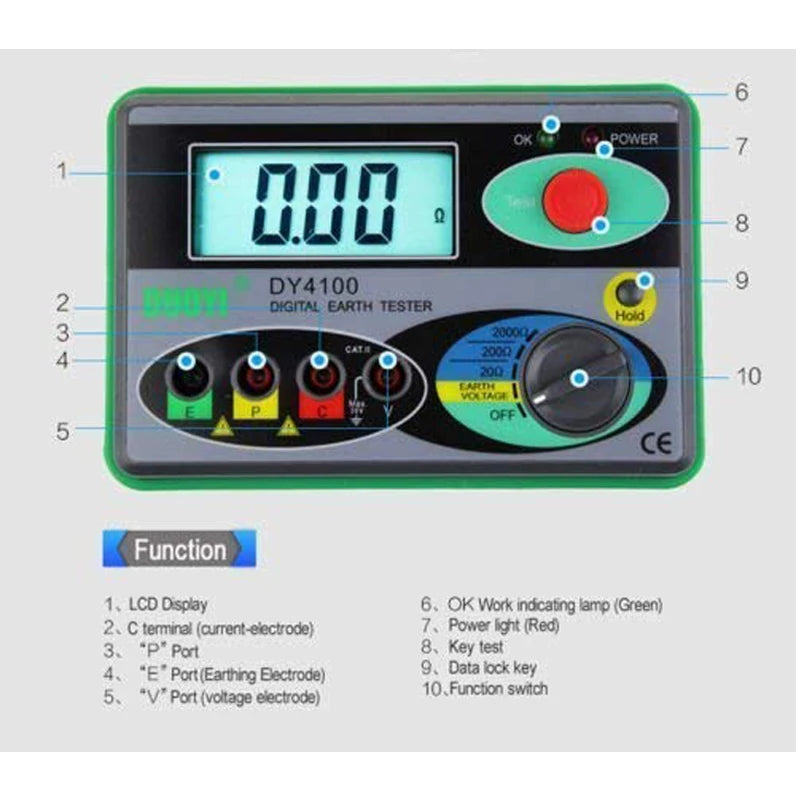

DUOYI DY4100 Feature:

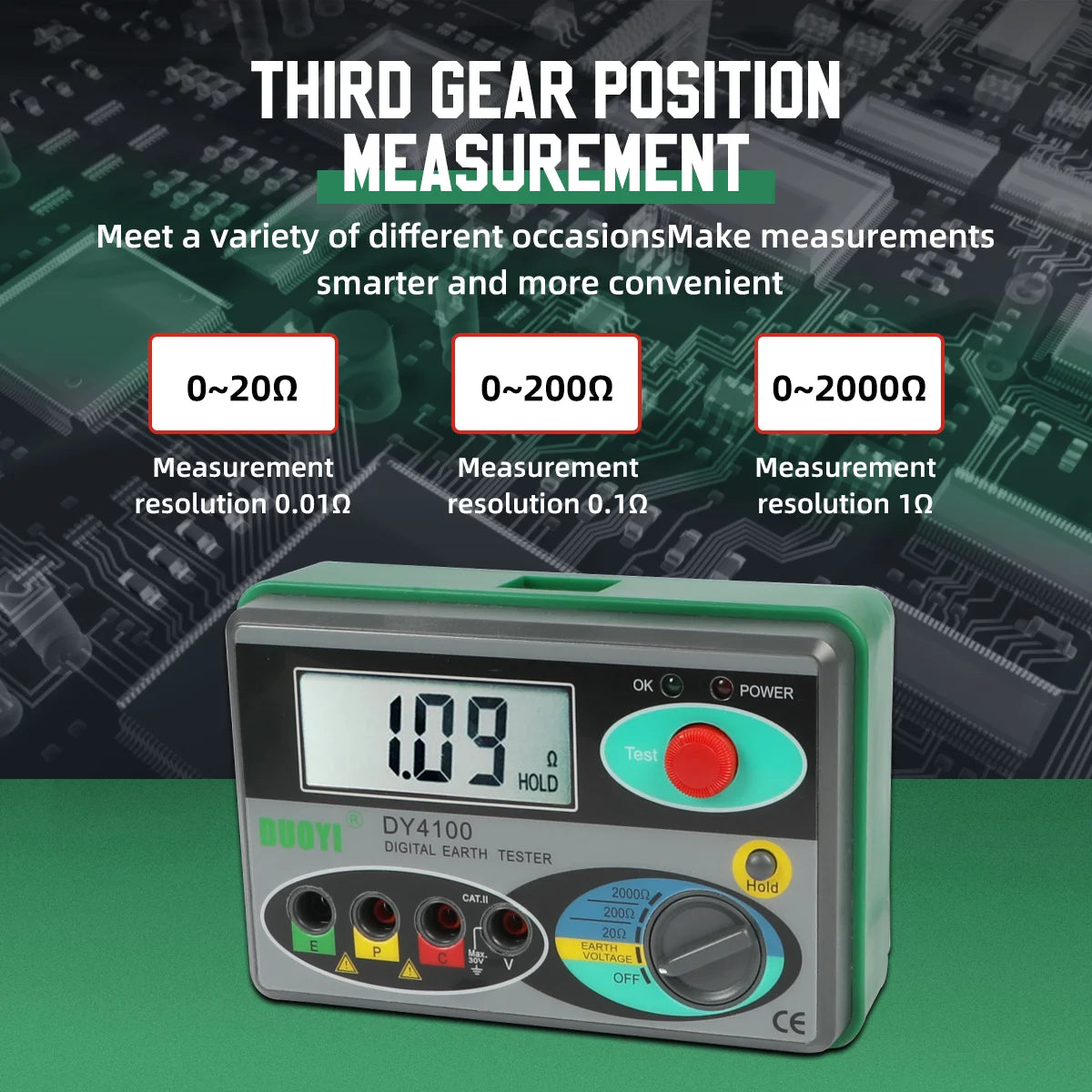

1. Measuring range of earth resistance: 0-2000Ω. 0/20/200/2000 ohm ±(2%+3)with 0.01 ohm
2. Measuring range of earth voltage: 0-30V(3%+5)
3.LED green light indicates normal operating mode.

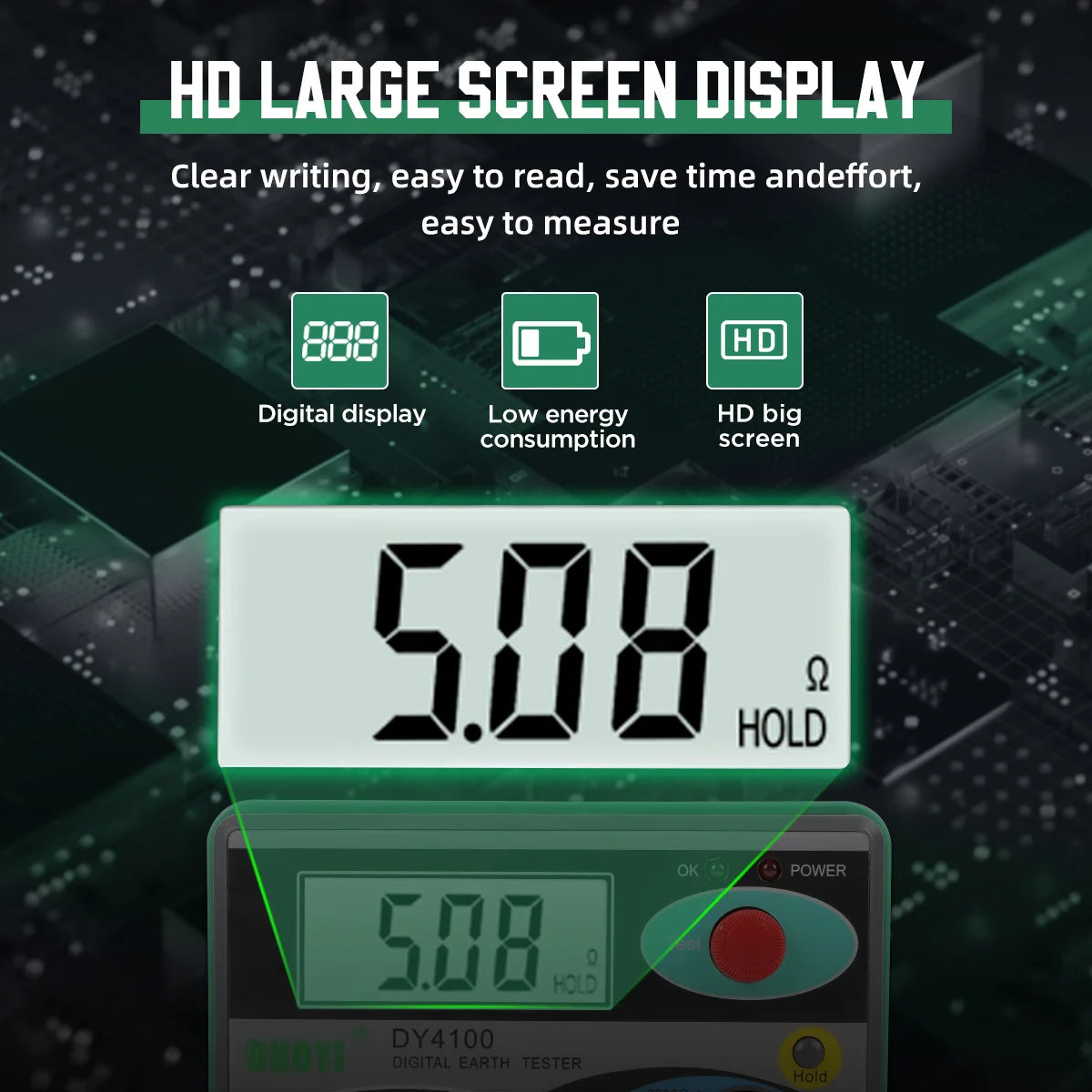

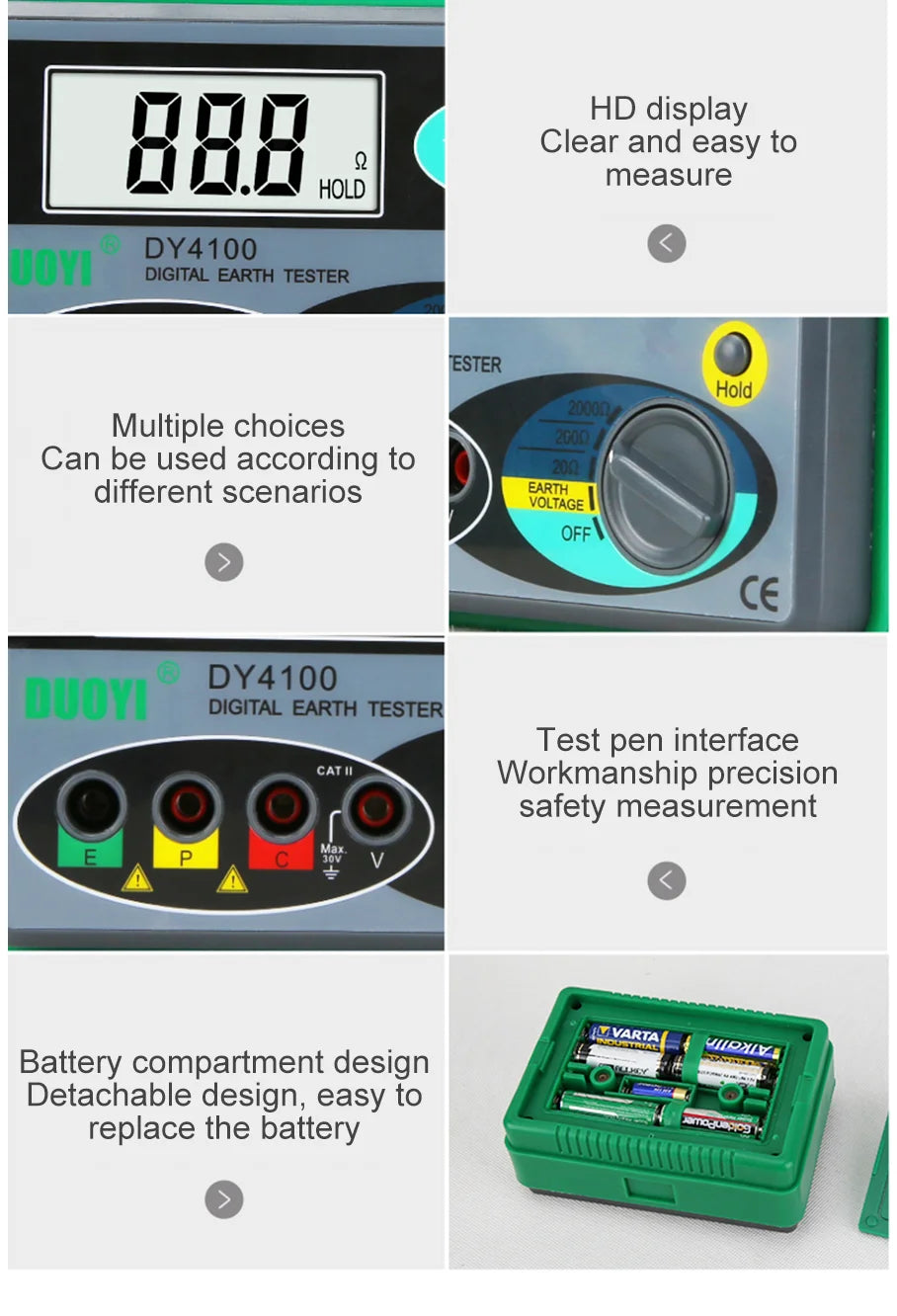

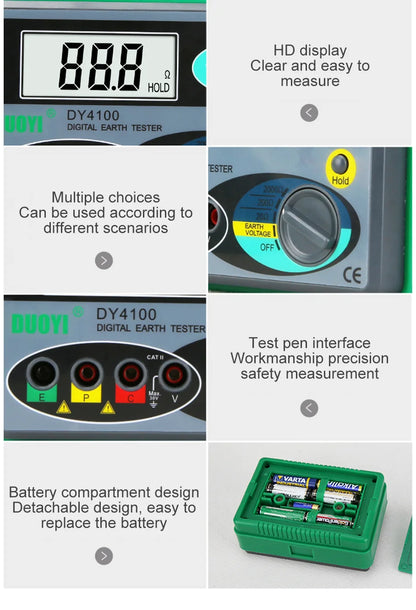

4.31/2 digit LCD display for more direct and convenient reading.
5. Low Battery Warning:
on LCD indicates deficiency of 12V battery.
LED red lighting off indicates deficiency of 1.5V battery.

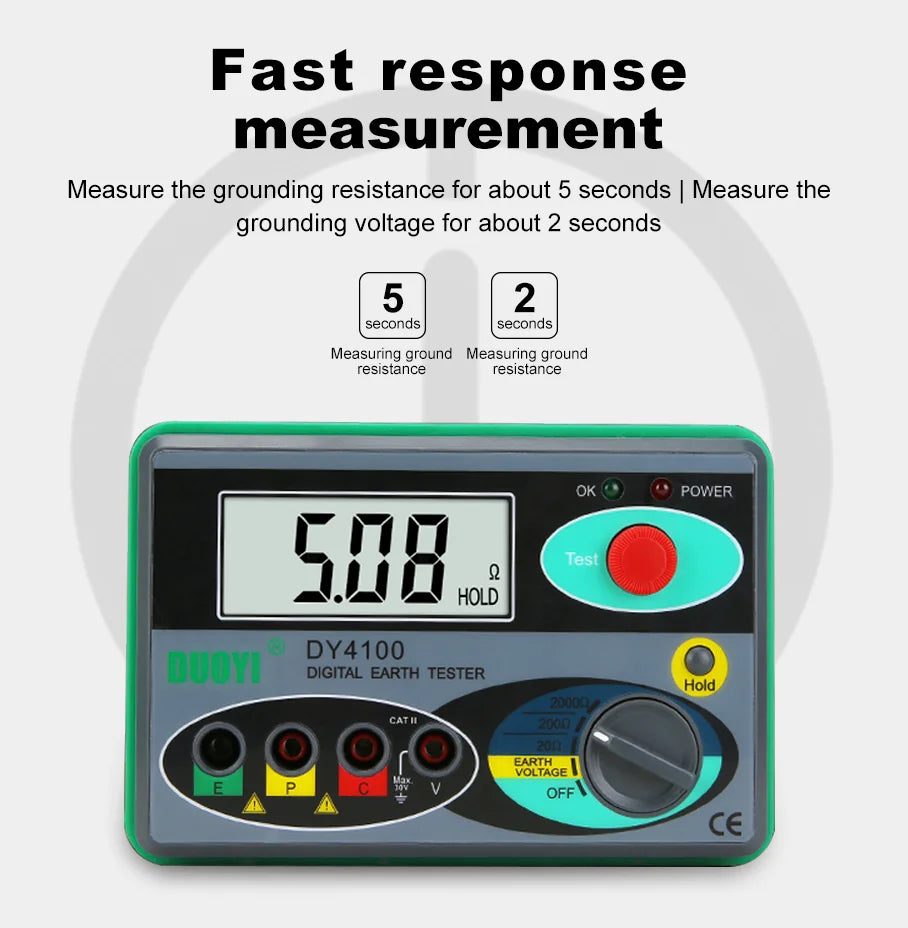

6. Fast Response:
measure earth resistance, about 5 seconds. Measure earth voltage, about 2 seconds.
7.Withstand voltage: AC 500V, 1 minute between circuit and outer casing.

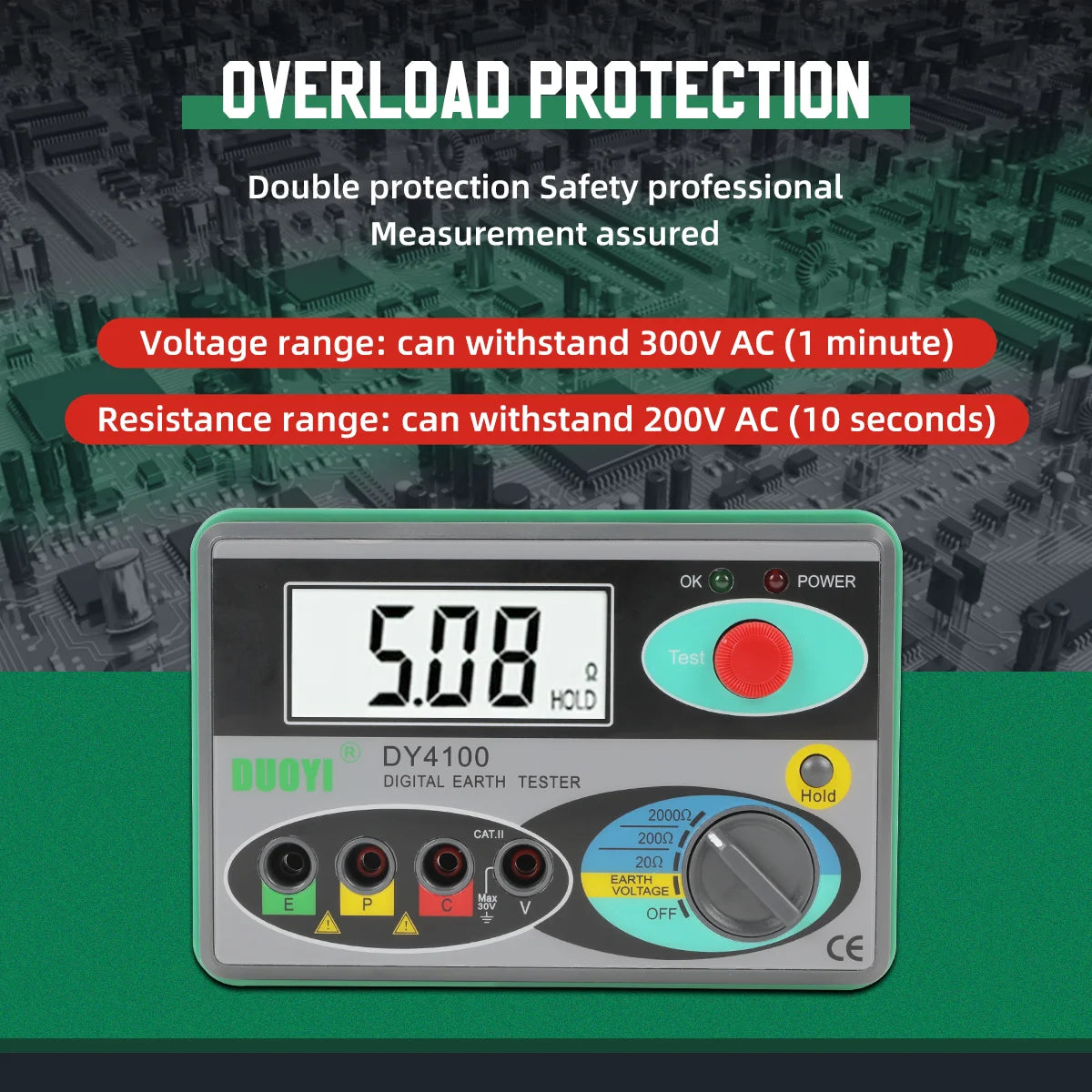

8. Overload protection:
on earth voltage, can withstand 300V AC 1 minute .
on earth resistance, can withstand 200V AC 10 seconds .
9. Power supply,six 1.5V AA batteries ,one 12V battery 23A.(not include)
10.Data Hold:yes
11.Working LED Indicator:yes
12.Function Symbol Display:yes

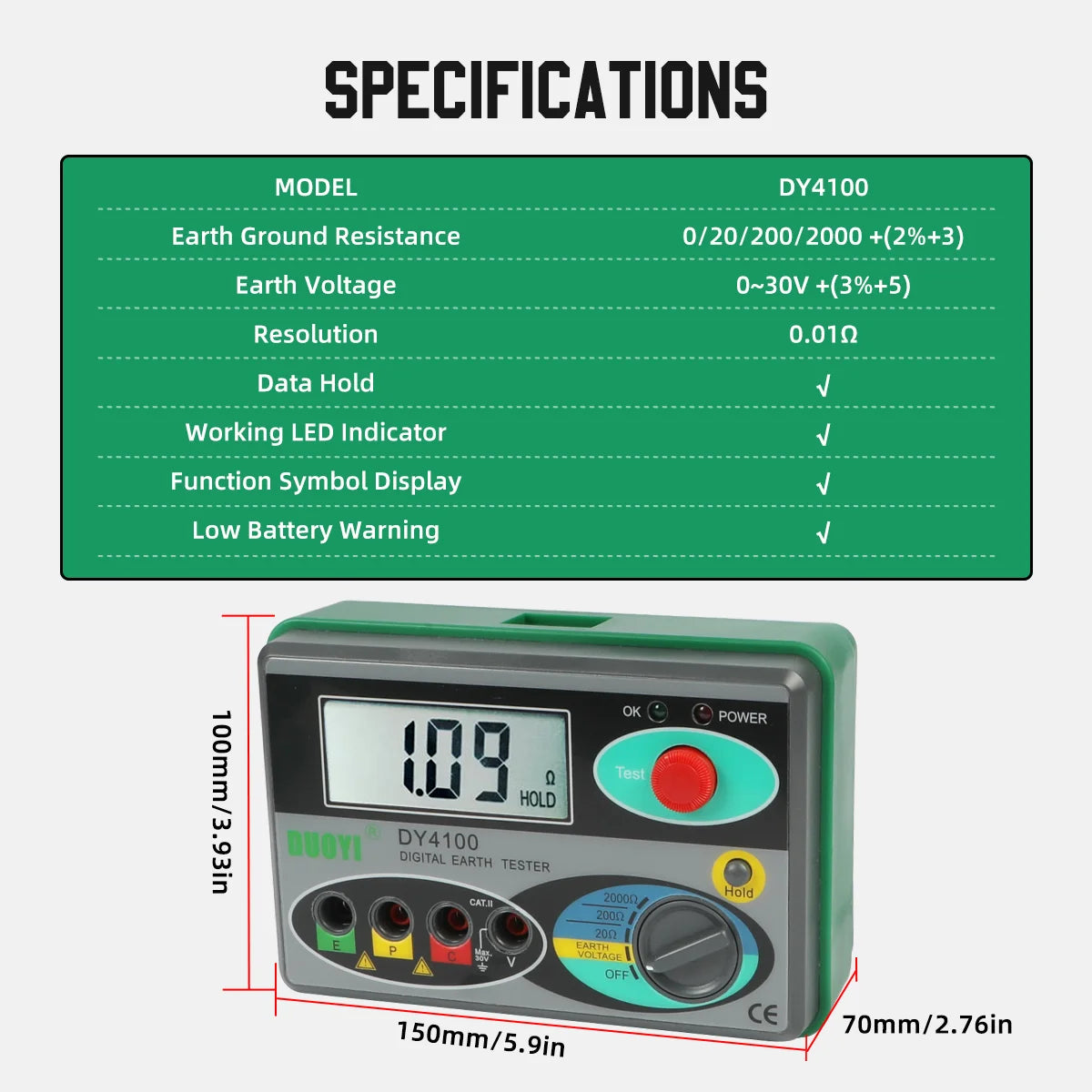

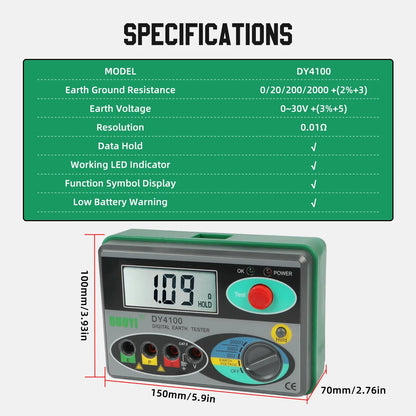

DUOYI DY4100 Specification
Earth Ground Resistance:0/20/200/2000Ω ±(2%+3)
Resolution:0.01Ω
Earth Voltage:0~30V ±(3%+5)
Data Hold:yes
Working LED Indicator:yes
Function Symbol Display:yes
Low Battery Warning:yes
Product Size:150×100×70mm.
Weight: about 680g NOT including battery
Power:AA1.5Vx6(UM3) (not include battery)
Working environment:
Working temperature:0°C-40°C relative humidity < 80%
Storage temperature: - 10°C-50°C relative humidity < 85%
Ensured accurate temperature:23°C±5°C
relative humidity < 80%

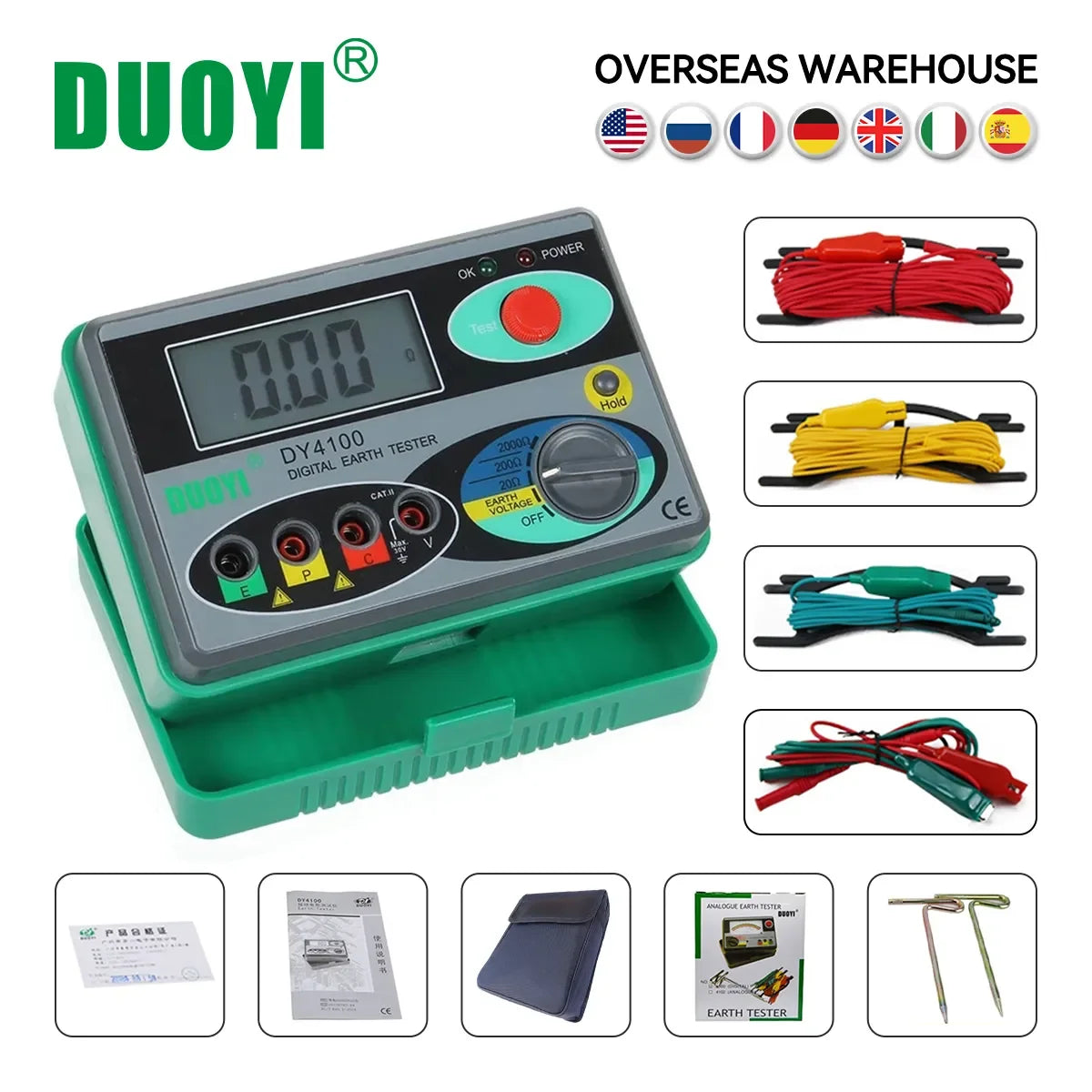

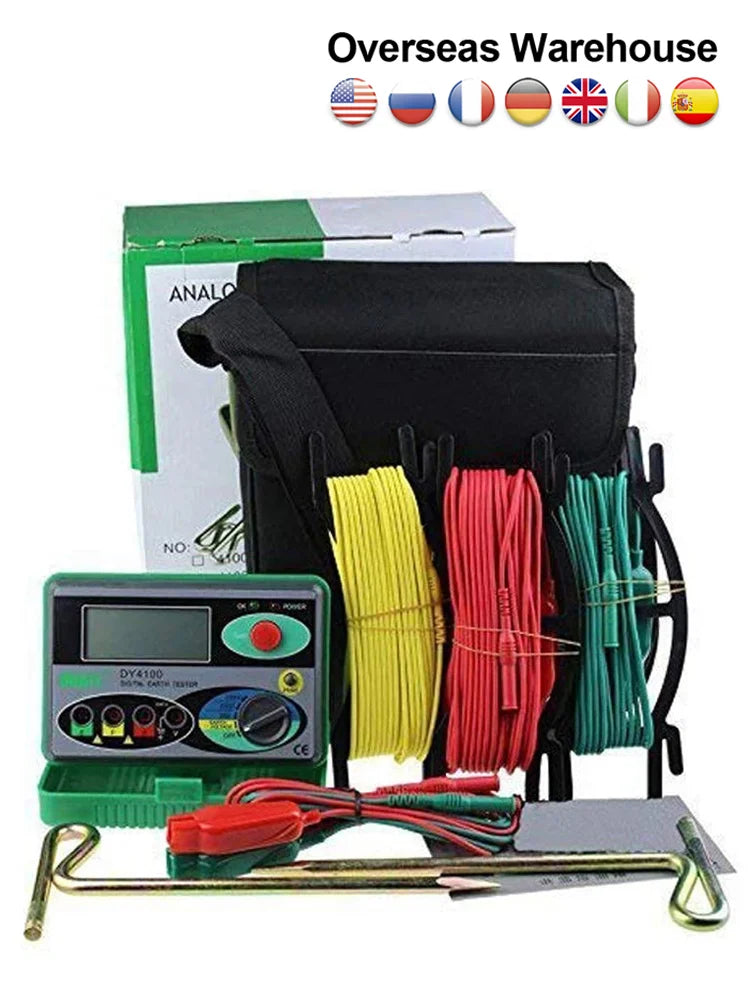

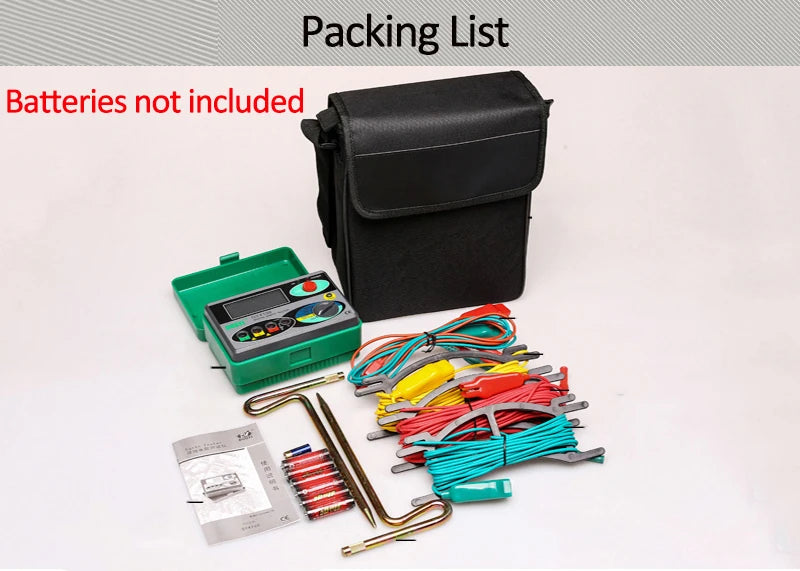

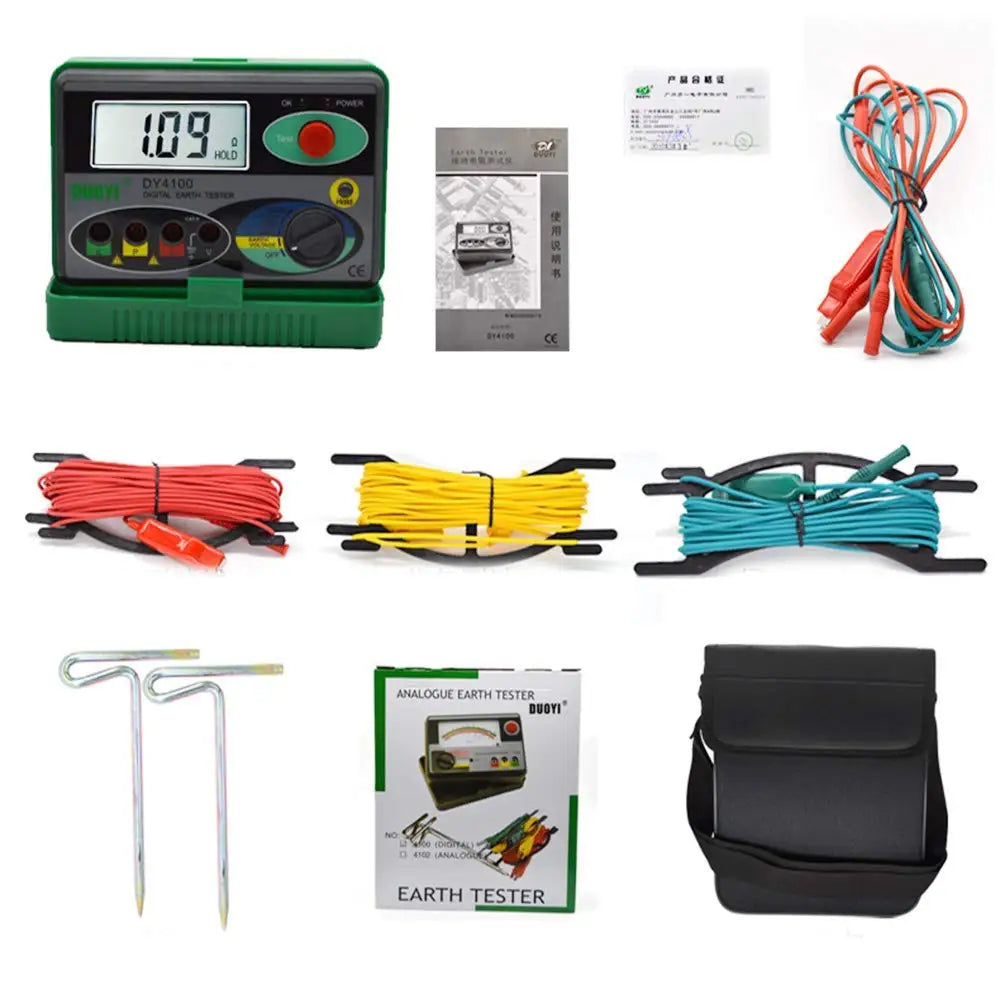

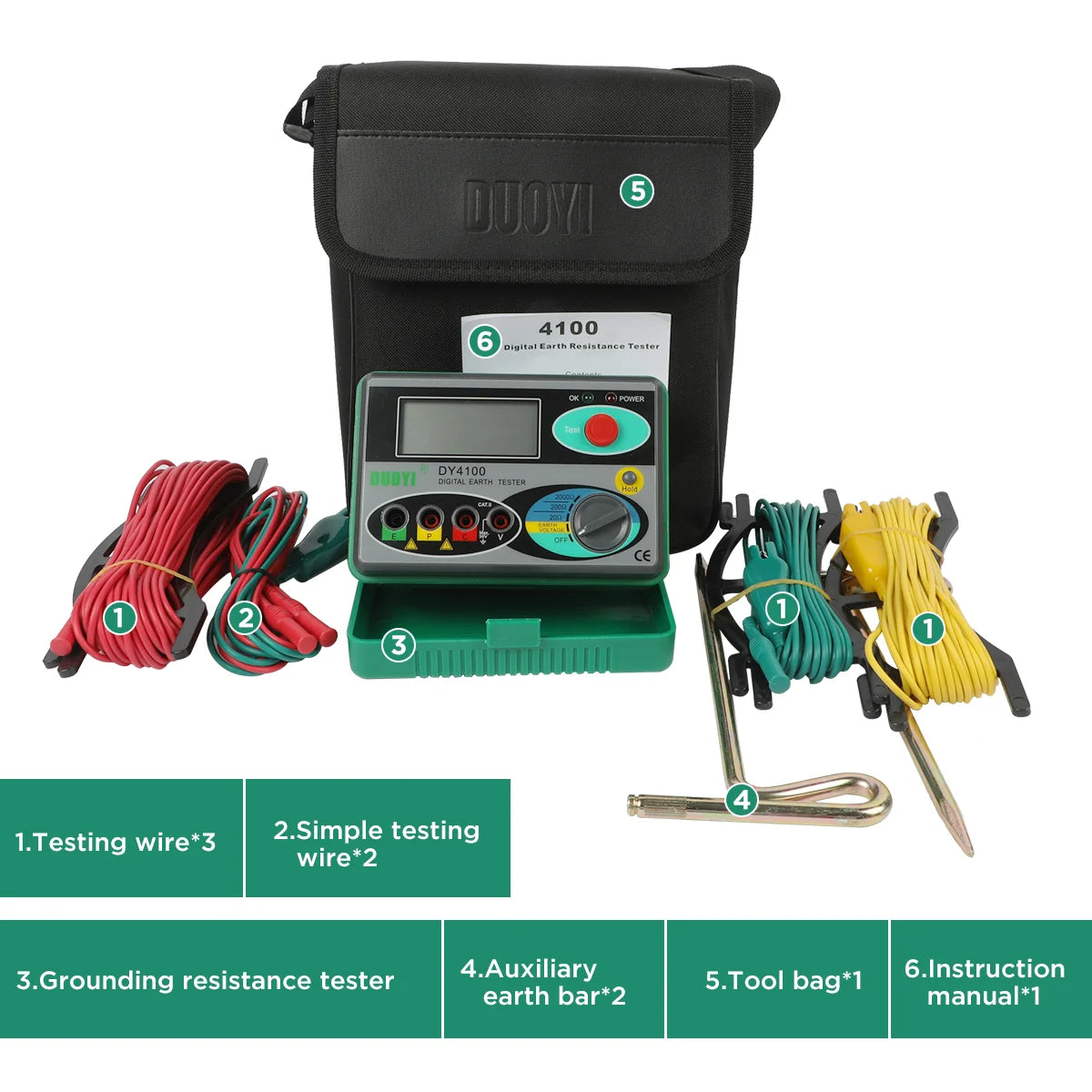

Package includes:
1 x Set of DY4100 Digital Earth Ground Resistance Tester
